Description

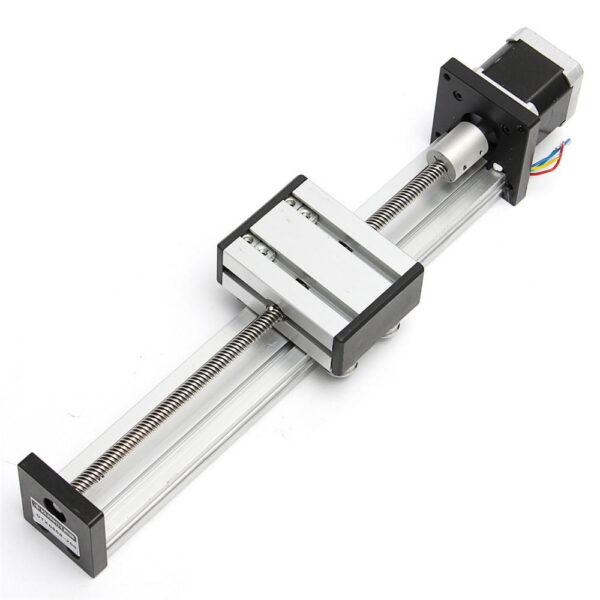

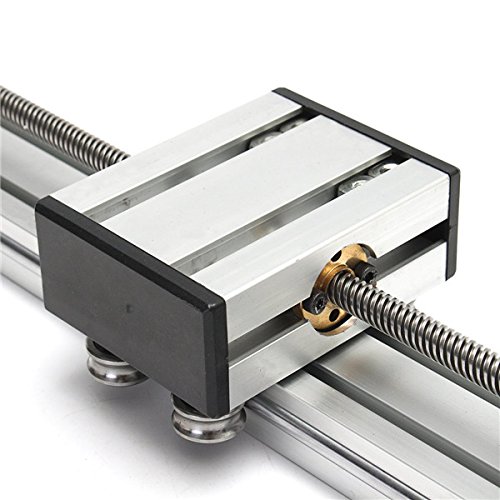

Description: 300mm stroke actuator cnc lead screw linear slide rail guide with 42 stepper motorspecification: materialaluminum alloysize450*64*50mmslide width78mmthe number of slider1horizontal load56kgvertical load15kgcurrent1.2avoltage12vresistance3.2 ohmsstep angle1.8º torque45n. Cmaccuracy0.1mmround trip accuracy0.1-0.5mmambient temperature-10º -50º slide stroke300mmquantity1pcsfeatures: horizontal load 56kg, vertical (pull) load 15kg. High precision, heavy load resistance. Long life, low coefficient of friction, versatility. The rotation movement into a linear motion, with a small frictional resistance.   package included: 1 x 300mm stroke actuatormore details: Â
